Case IH CS100, CS110, CS120, CS130, CS150 Tractor Service Manual

• Covers Case IH CS100, CS110, CS120, CS130, CS150 Tractors (does not cover PRO models)
• P/N 7-96892
• 1,788 pages
• Downloadable PDF format
• Searchable, printable
• 107mb file size
• Works with Windows/Mac/Tablet/Smartphone

The Case IH CS100, CS110, CS120, CS130 and CS150 service manual provides specifications, step-by-step instructions and accurate illustrations to aid you with mechanical, electrical and hydraulic repairs. The complete service manual was carefully reproduced from the original dealer manual into a high quality digital PDF format, and is the most comprehensive reference for mechanics repairing or rebuilding the tractor to the manufacturer’s standards.

Latest digital edition with over 1,700 pages.

Topics:

ENGINE

• Technical Data
• Design and Operation
• Tightening Torques

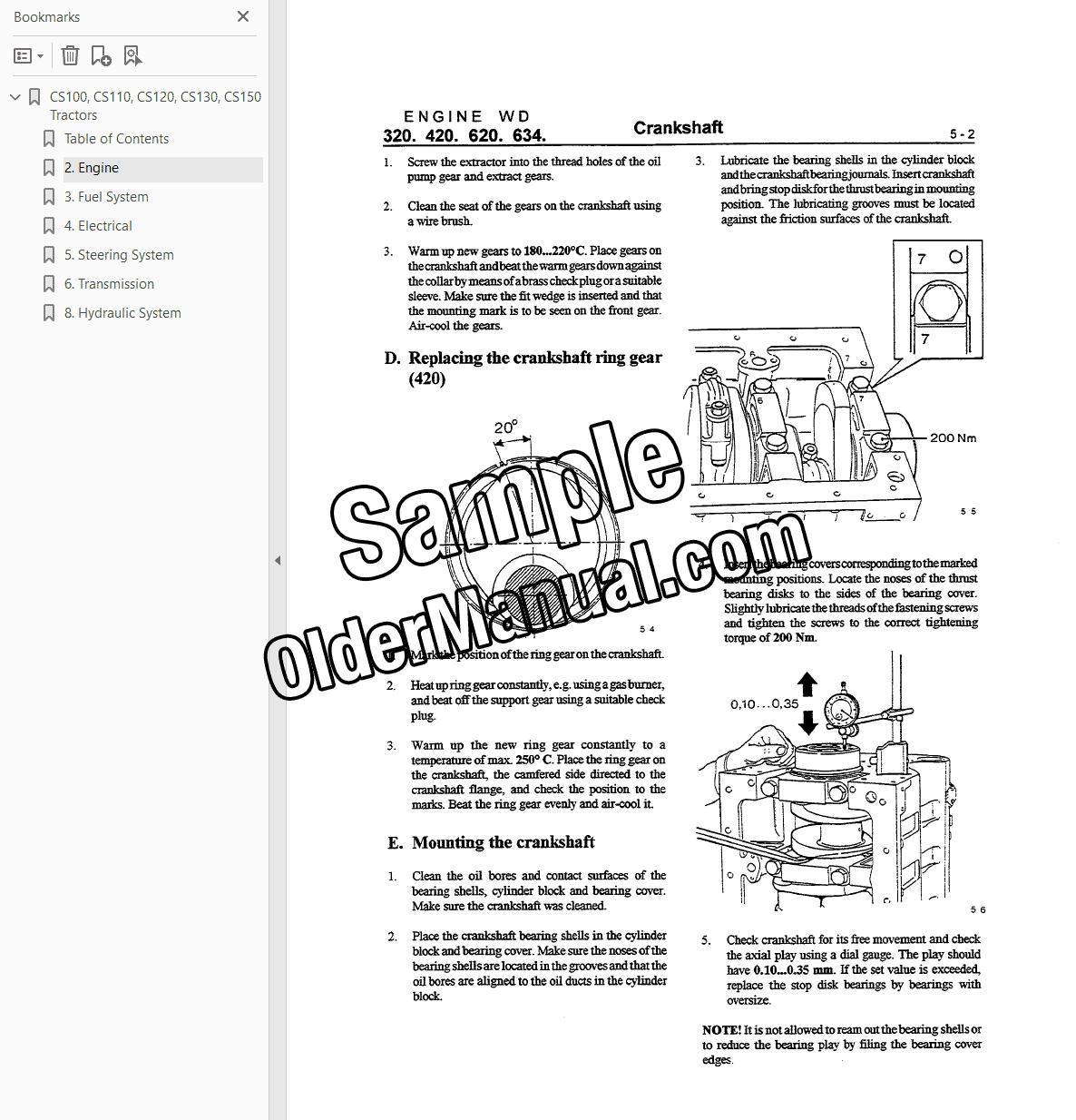

• Cylinder Block
• Cylinder Head
• Valve Timing Gear
• Crankshaft
• Connecting Rods and Pistons
• Flywheel
• Engine Timing
• Lubrication System
• Cooling System

FUEL SYSTEM

• How it Works – Injection System
• Bleeding

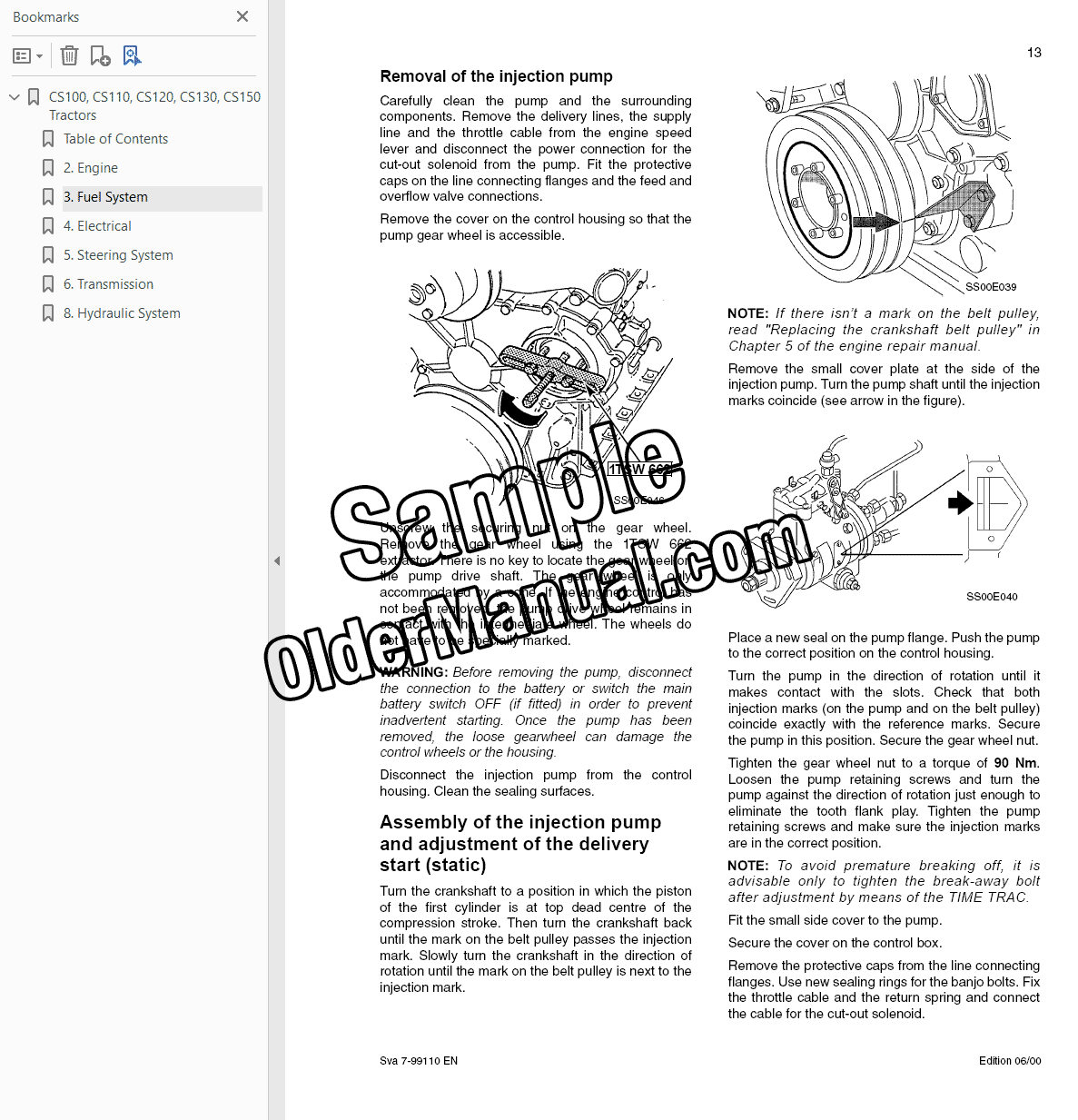

• Removing and Fitting the Fuel Injection Pump
• Injection Nozzles Overhaul
• Idle Speed Adjustment
• Testing Fuel Pressure
• TIME TRAC

ELECTRICAL

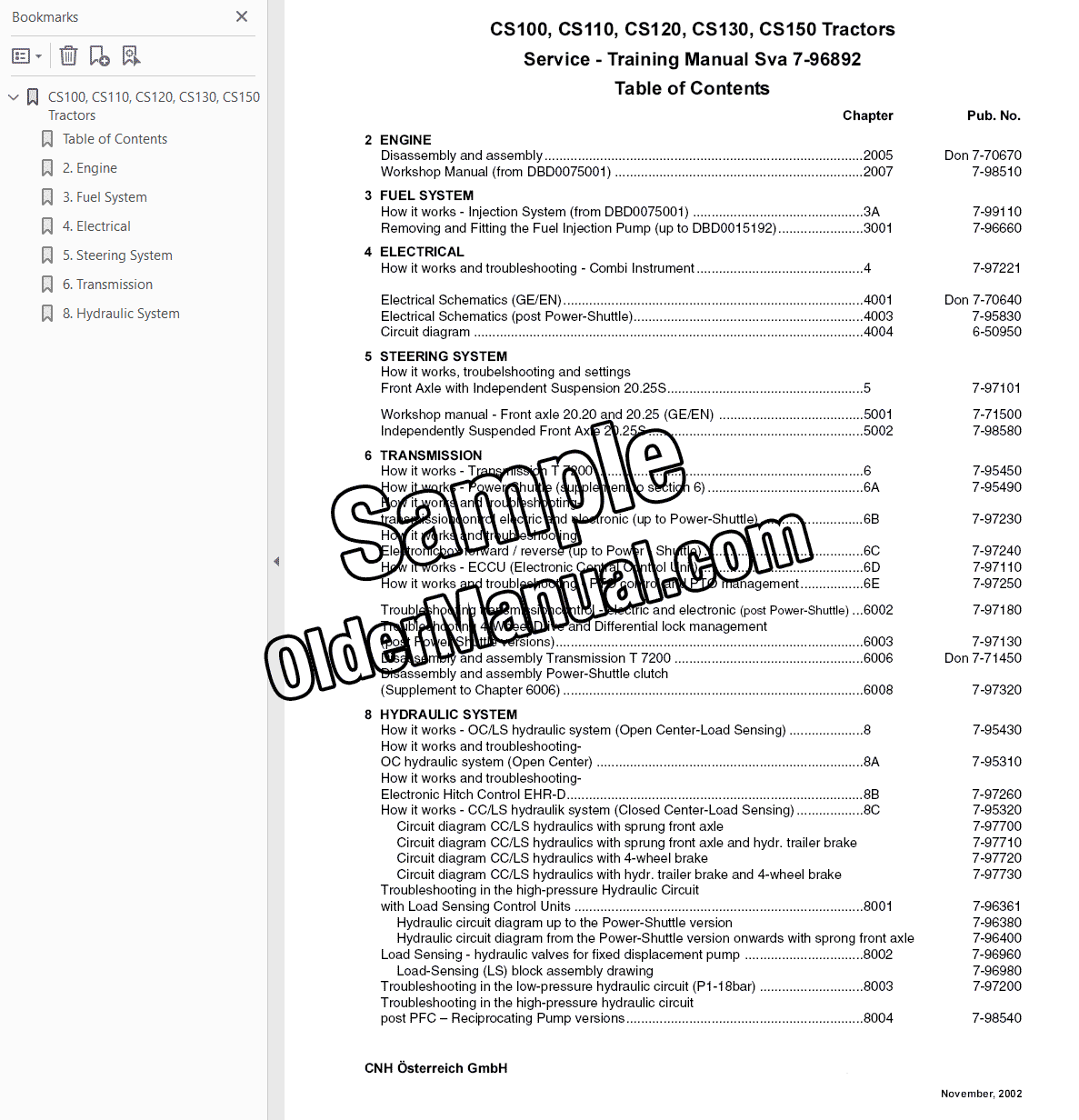

• Combination Instrument
• Troubleshooting Using the Diagnostic System
• Electrical Component Data
• Test Values
• Operating and Coding of the Digital Instrument with Integrated Operating Hours Counter
• Calibrating Driving Speed

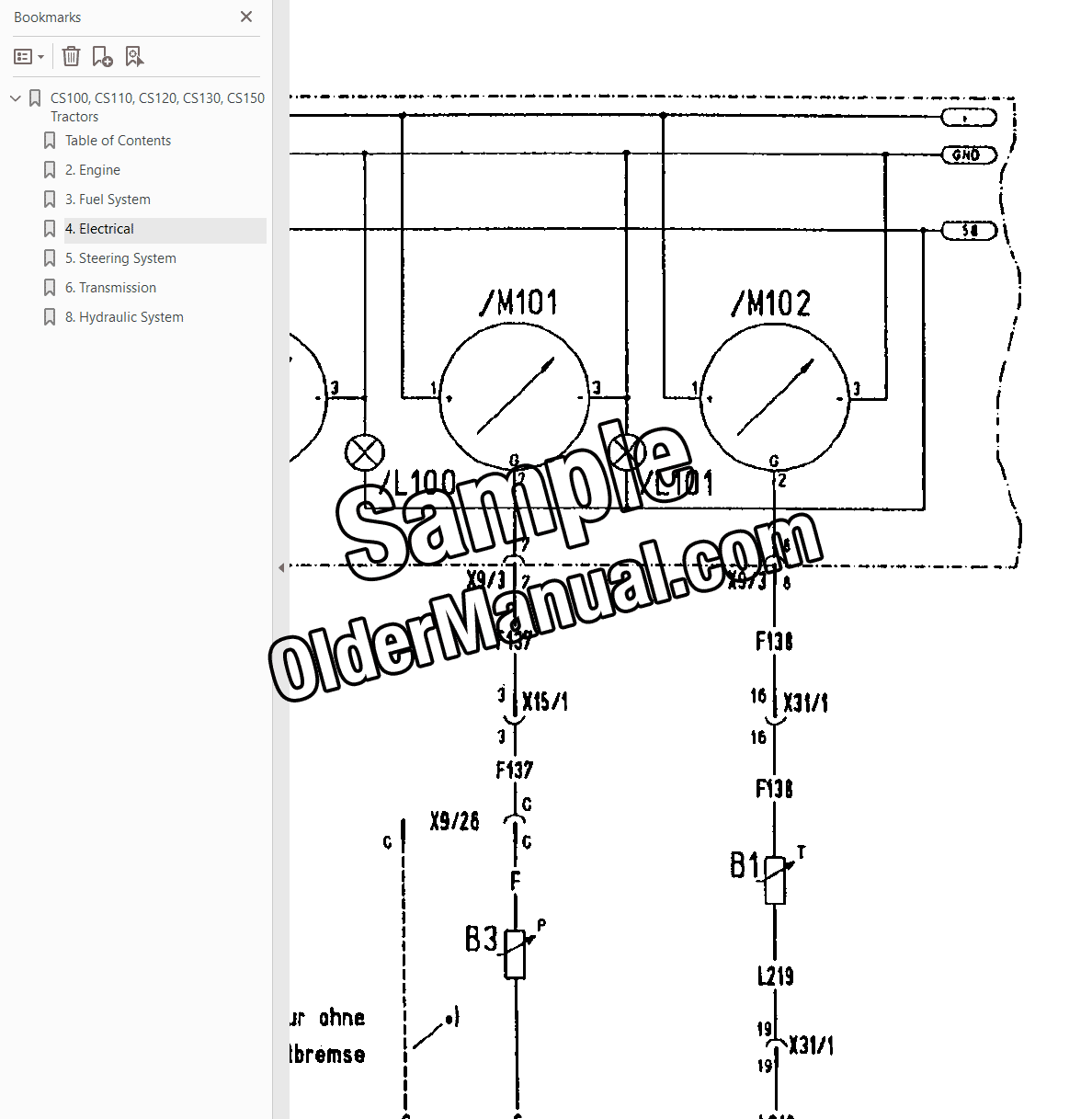

• Electrical Schematics (German/English)
• Circuit Diagrams
• Fuses and Relays
• Electrical Connectors

STEERING

• How it Works, Troubleshooting and Settings
• Front Axle with Independent Suspension 20.25S
• Workshop manual – Front axle 20.20 and 20.25 (DE/EN)
• Independently Suspended Front Axle 20.25S

TRANSMISSION

• How it Works – Transmission T7200
• How it Works – Power-Shuttle (Supplement)
• How it Works and Troubleshooting –  Transmission Control Electric and Electronic (up to Power Shuttle)
• How it Works and Troubleshooting- Electronicbox Forward / Reverse (up to Power Shuttle)
• How it Works – ECCU (Electronic Central Control Unit)
• How it Works and Troubleshooting – PTO Control and PTO Management
• Troubleshooting Transmission Control – Electric and Electronic (post Power Shuttle)
• Troubleshooting 4-Wheel Drive and Differential Lock Management (post Power Shuttle Versions)

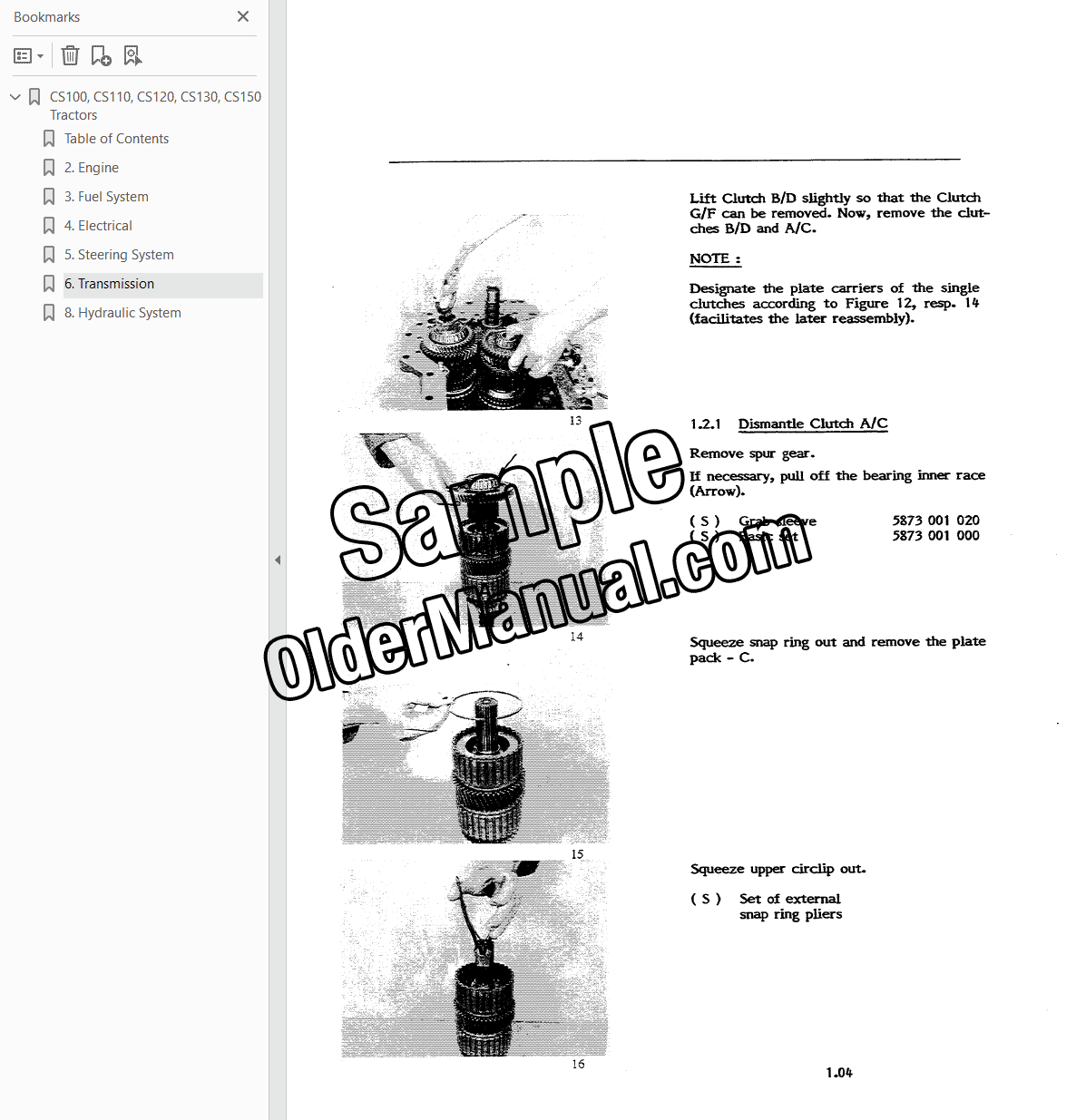

• Disassembly and Assembly Transmission T7200
• Disassembly and Assembly Power Shuttle Clutch (Supplement)

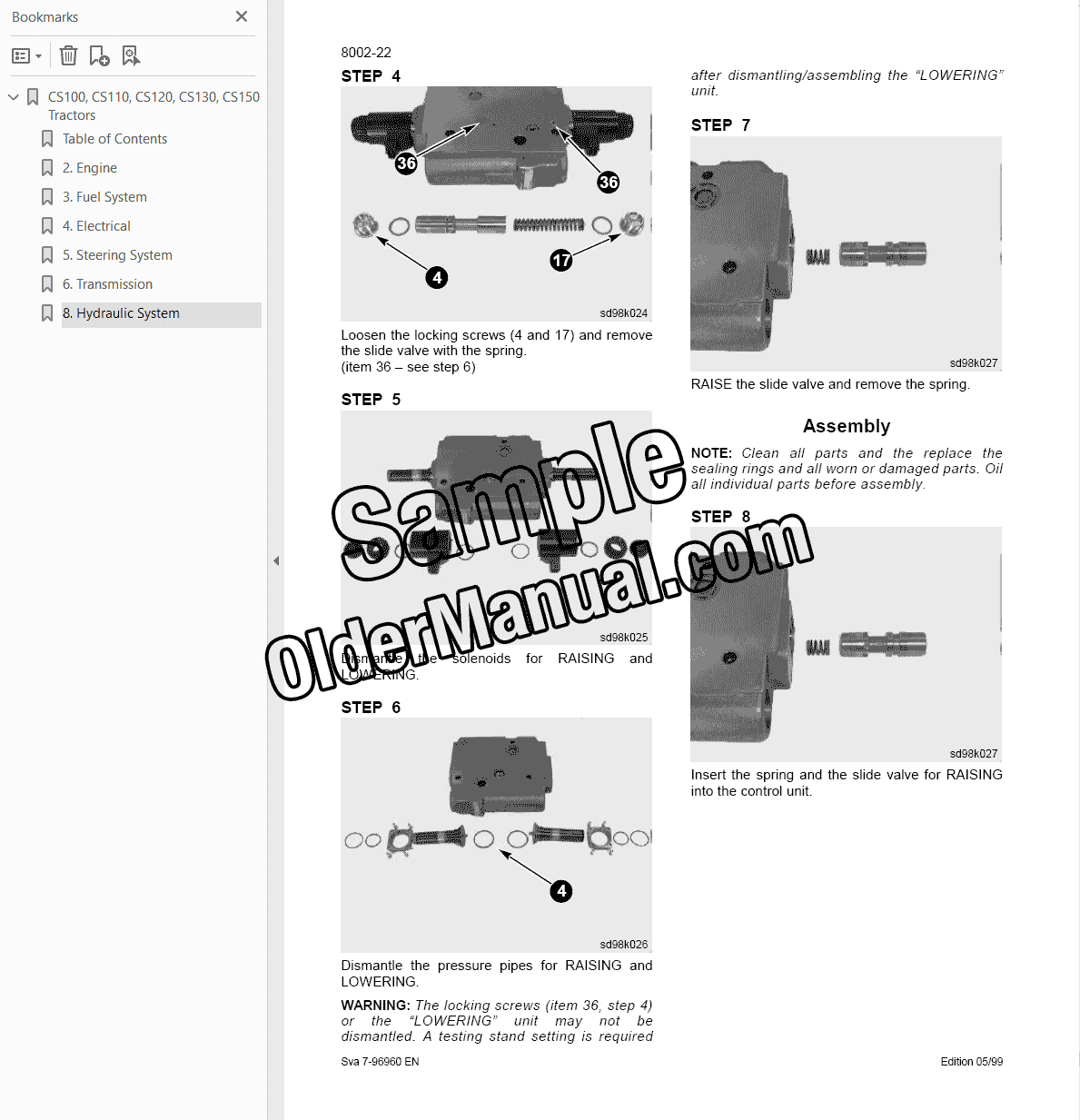

HYDRAULIC SYSTEM

• How it works – OC/LS hydraulic system (Open Center-Load Sensing)
• How it works and troubleshooting- OC hydraulic system (Open Center)
• How it works and troubleshooting- Electronic Hitch Control EHR-D

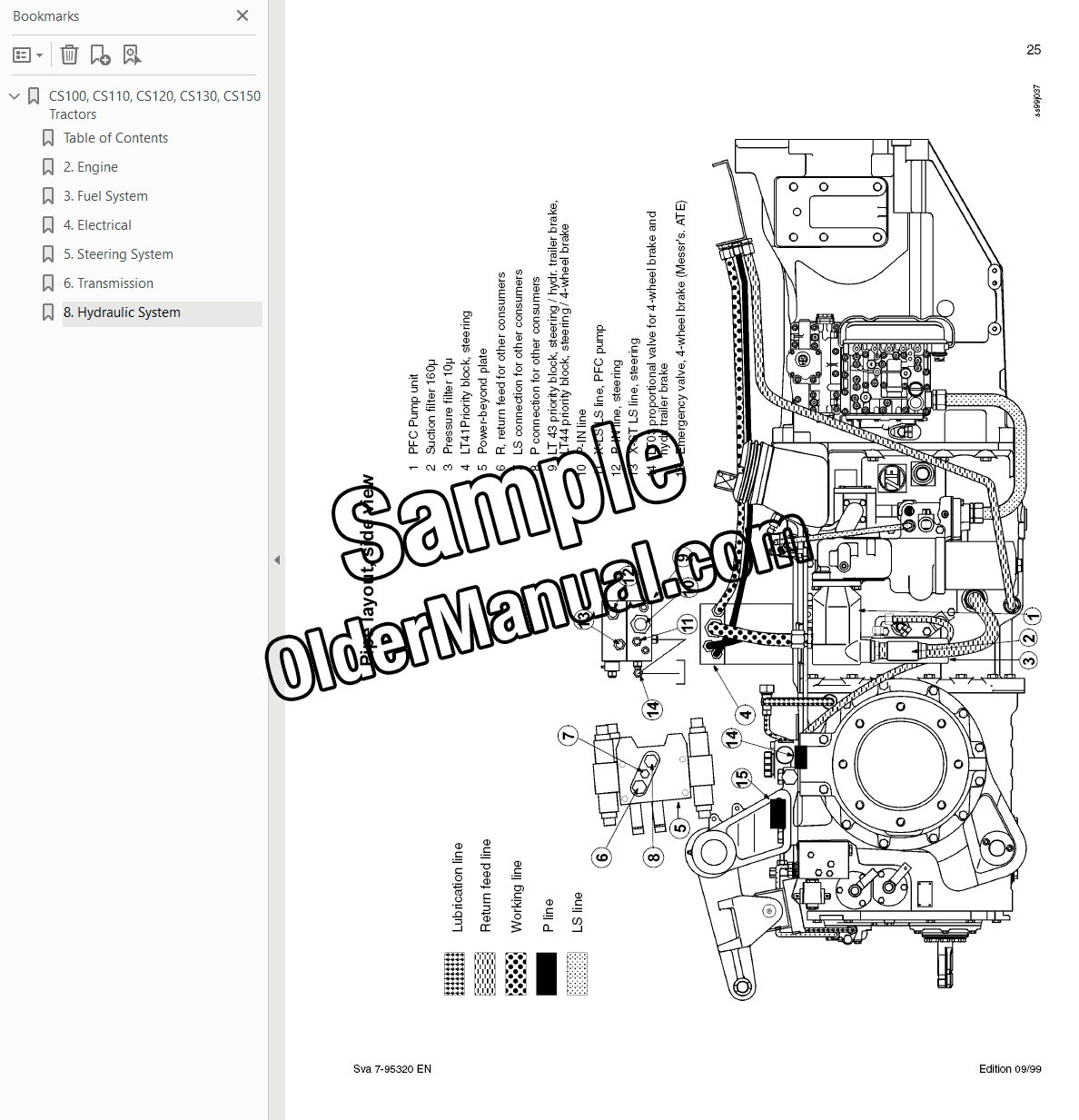

• How it works – CC/LS hydraulic System (Closed Center-Load Sensing)
• Troubleshooting in the high-pressure Hydraulic Circuit with Load Sensing Control Units
• Load Sensing – hydraulic valves for fixed displacement pump
• Troubleshooting in the low-pressure hydraulic circuit (P1-18bar)
• Troubleshooting in the high-pressure hydraulic circuit post PFC – Reciprocating Pump versions
