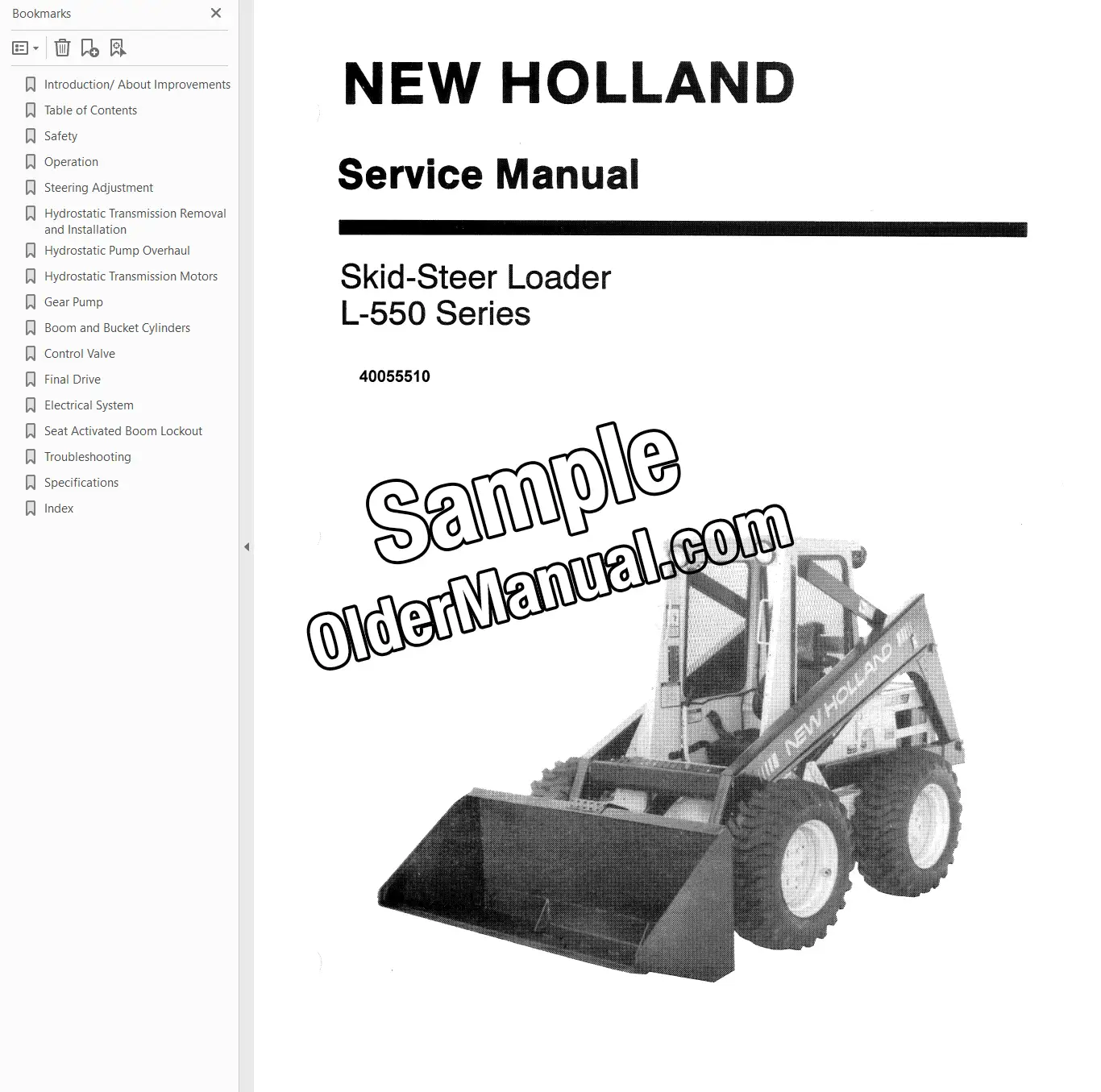

New Holland L553, L554, L555 Skid Steer Loader Service Manual

• Covers New Holland L553, L554, L555 Skid Steer Loader
• P/N 40055510
• 116 pages
• Downloadable PDF
• Bookmarked, searchable, printable
• 66mb file size
• Works with PC/Mac/iPad/Tablet

The New Holland L553, L554 and L555 service manual covers specifications, step-by-step procedures and detailed photos to help professional and DIY mechanics with mechanical, electrical, and hydraulic repairs on the skid steer. It was sourced from the original dealer publication and reproduced in a high quality PDF format for your computer, tablet, or smartphone. Whether you’re overhauling hydraulic components, replacing seals or making adjustments, this is the official guide you need to get the job done safely and efficiently.

With our automated digital delivery system, you’ll receive the PDF shop manual within minutes. Skip the shipping wait or dealer visit, and save time and money by downloading the factory L553, L554, L555 service manual today.

Please note that this service manual covers the loader chassis only. The Perkins 4.108 engine repair manual is sold separately.

Topics:

• Steering Adjustments
• Hydrostatic Operation
• Hydrostatic Transmission Removal
• Hydrostatic Pump Overhaul
• Hydrostatic Transmission Motors
• Gear Pump
• Boom and Bucket Cylinders
• Control Valve
• Final Drive
• Electrical System
• Wiring Diagram
• Seat Activated Boom Lockout
• Troubleshooting
• Specifications

Basic Specifications:

ENGINE Diesel
Manufacturer  Perkins
Model 4.108
Cylinders 4
Cycle  4-stroke
Displacement 107 cu. in.
Horsepower (Mfg. Max. Rating) 42@ 2800 RPM
Engine Torque (Mfg. Max. Rating) 156 ft. lbs. (210 N·m) (11.5 kfg) at 2200 RPM
Speeds –
High Idle (no load) 2810/2820 RPM
Low Idle (no load). 850/950 RPM
Valve Clearance –
Intake (cold) 012 (.30 mm)
Exhaust (cold) 012 (.30 mm)
Firing Order 1-3-4-2
Oil Filter – Replaceable Cartridges S.N.H. 505511
Fuel Filter – Replaceable Cartridges S.N.H. 500625
Approximate Fuel Consumption – Approximate – Continuous full load 2.5 gal/hr (9.4 I/hr)

CAPACITIES
Crankcase capacity (Includes filter) 6 qts. (5.7 I)
Ignition type Compression
Air Cleaner
Dry type filter
Primary element S.N.H. 221404
Safety element S.N.H. 272744
Capacities
Fuel tank 16 gal. (61 I)
Engine crankcase 6 qts. (5.7 I)
Chain case reservoir  17 gal. (65 I)
Cooling system  11 qts. (10.41)
